The Evenfall Modular Studio System

The way we work has changed. Where we work has changed even more. Evenfall Acoustics, Ltd. introduces a modular interior system that can help transform an ordinary rectangular room into a reasonably accurate studio environment.

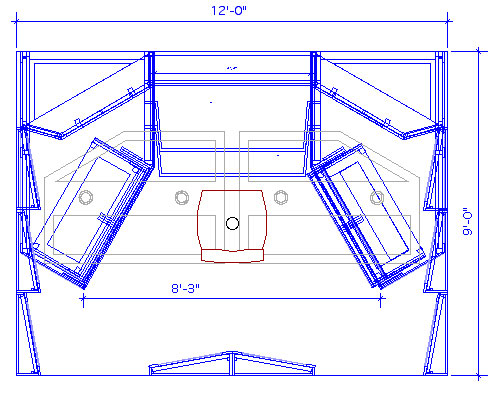

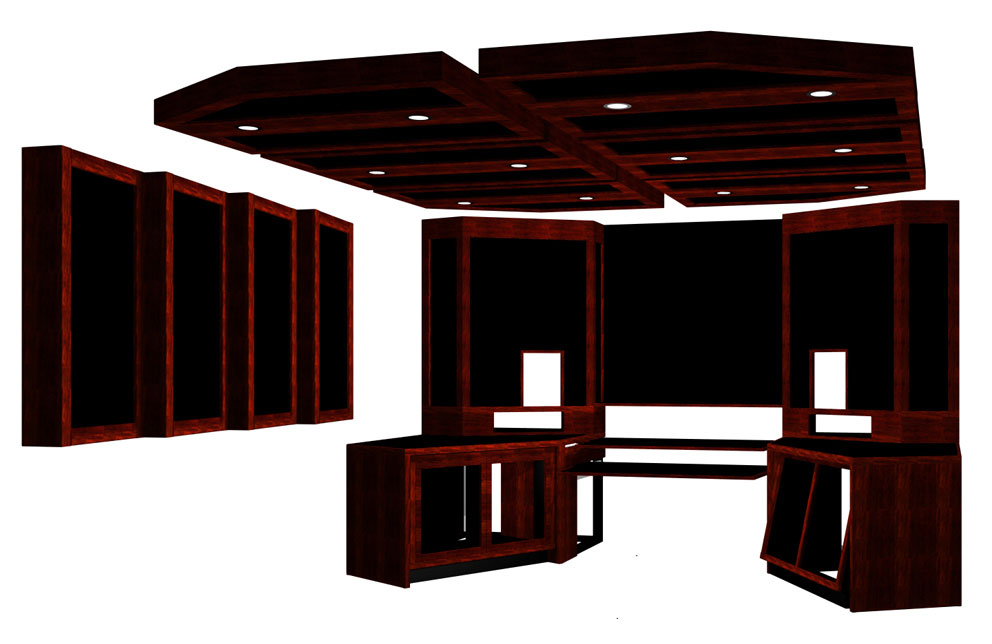

The complete system consists of 26 individual furniture units that integrate acoustical components and workstation furnishings. The system can be purchased as a complete room or in sections.

FEATURES:

WORKSTATION:

Two sliding shelves are user configurable and can accommodate instrument keyboards on the bottom and console/control surfaces on the top. Shelves are sized for any console similar to Digidesign's Control/24 or Sony's DMX-R100. The keyboard shelf slides under as the console is pulled out into the room for mixing sessions. A third shelf accommodates video monitors and/or monitor arms. The upper center panel can also mount plasma displays and LCDs.

Two cabinets can roll out from under the side desk units to reside in the room if desired. This allows for more seating area at the desks. One roll out cabinet houses the CPU and hard drive quiet bay and provides sound isolation from any gear producing cooling fan noise. The second roll out cabinet contains 24U of rack space. When these cabinets are under the desk unit, they are ventilated through the soffit unit which sits above.

The monitor soffit units contain panels that are custom cut to fit a variety of popular monitor speakers. These units also contain bass traps and broad band absorbers.

CEILING ACOUSTICAL CLOUD SYSTEM:

Cloud units contain broad band absorbers and come with recessed low voltage light fixtures. The light fixtures can plug into any existing ceiling fixture.

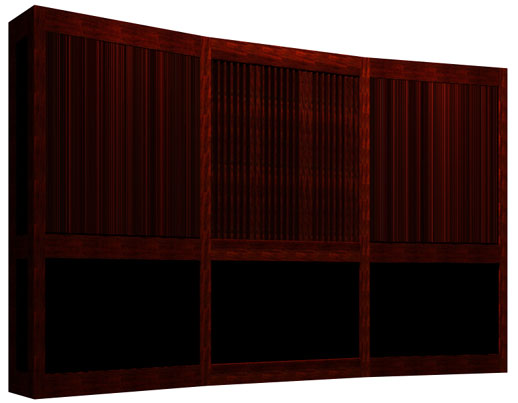

BACK WALL UNIT:

Consists of 6 sections that contain bass traps and QRD type diffusers to provide a highly diffused rear field characteristic.

SIDE WALL UNITS:

Individual hanging units can mount either broad band absorbers or diffusers. Units are angled to counteract parallel wall surfaces.

System is available in Mahogany, Oak, Maple or Cherry. A wide range of insert panel fabric colors is also available.

PRICING: TBA

Contact: Lawrence P. Swist Designs
